AM 950 F

At Airmaster, we believe it’s crucial to improve the indoor climate in schools and daycare centers.
Improved indoor air quality benefi ts the health and wellbeing of children and can boost their learning.

Good ventilation ensures that CO₂ levels are kept low, moisture and pollution are removed and the risk of infection is reduced. In buildings with many children and adults in the same room, it's important that the air is replaced regularly - either through natural ventilation (e.g. open windows) or mechanical ventilation.

The AM 950 F is designed to make it easy, simple and convenient for schools and daycare centers to achieve a good indoor climate.

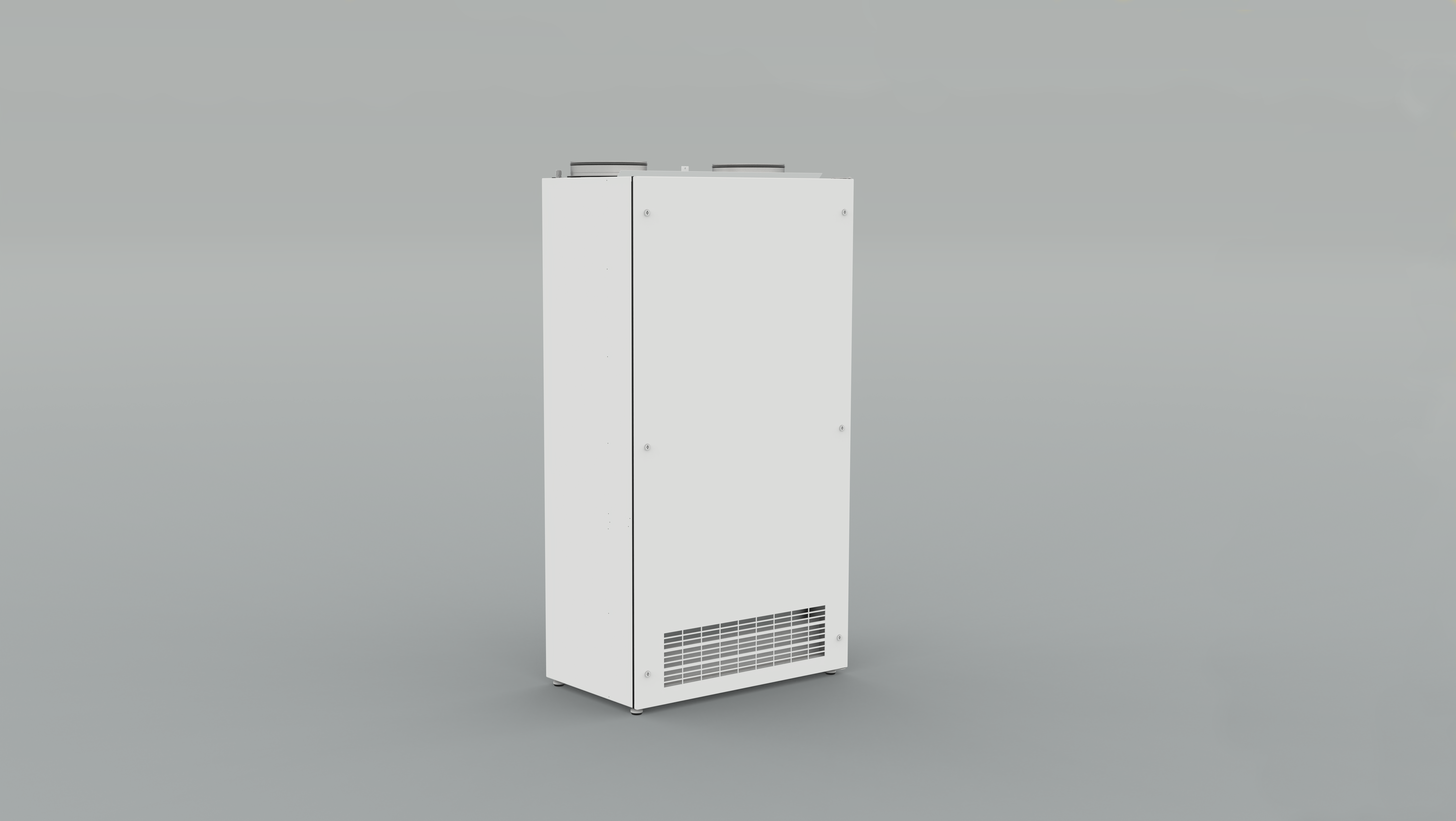

This floor-standing ventilation unit is ideal for spacious areas such as classrooms and playrooms. Its classic white design integrates seamlessly into the room's décor, whether placed on the floor or discreetly between cabinets.

Examples of applications:

Schools
Daycares
Institutions

Click to play

AM 950 F Brochure

Make fresh air easy, uncomplicated and convenient for schools and daycare centers.
Explore the AM 950 F further in the brochure here.

Download brochure

Technical description

AME 900 F ensures efficient, noise-free air replacement with a maximum sound pressure level. It features high heat recovery efficiency and low power consumption, employing energy-efficient EC motors for silent operation and flexible adjustment. It is VDI 6022 certified, to ensure fulfillment of hygiene requirements.

The AM 950 F is equipped as standard with a built-in LED indicator for warnings or alarms. The ventilation unit can be configured, like all Airmaster units, with sensors, heating surfaces, control panel or connection to central control as needed.

Below you can see a selection of options. See all options in the datasheet.

Electric comfort heating surface to support inlet air temperature during cold periods.

Electric preheater warms the outside air before it is supplied to the counterflow heat exchanger, thereby preventing ice formation in the heat exchanger.

Condensate pump for condensate drainage.

The Airlinq® Orbit control panel with touch function is user-friendly for navigating and setting operating parameters.

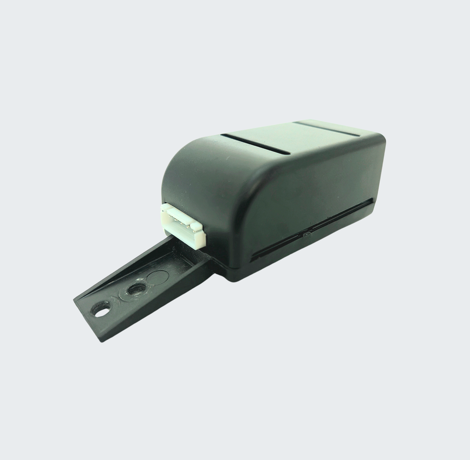

The CO₂ sensor measures the CO₂ level in the room. This provides both a high level of indoor air quality with reduced energy consumption.

Airlinq© Online. Control and monitor ventilation in real-time from anywhere using your device. Optimize ventilation operations, manage energy usage, schedule service visits, reduce onsite visits, and more.

Smoke detector

With a smoke sensor installed in a ventilation system, it is possible for the system to detect smoke and act accordingly to prevent smoke spreading to the room/building.

The sensor is located on the air intake side of the system and will therefore detect smoke that is drawn into the system from the outside via the system's air intake. When smoke is detected, the system will stop and the main dampers will close, which will prevent further smoke from being drawn into the system and from spreading to the control room. If smoke is detected, an alarm is sent to the controller.

The smoke sensor is tested according to the EN 54-27 series, which means that it meets strict safety and reliability requirements, ensuring that it can effectively detect smoke in the facility. In addition, it has been tested to function correctly under different conditions, including variations in airflow, temperature and humidity.

AM 950 F data

Documentation

For technical data, installation or operation and maintenance - download documentation here.
For further documentation visit our download center.

Click on the image

Versions

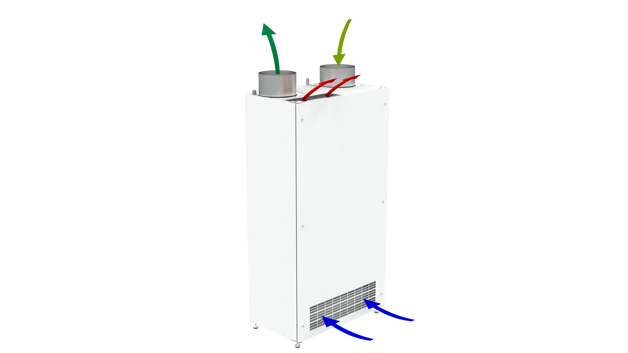

AM 950 F VV

AM 950 F is a vertical version where the inlet and outlet are led up through the top of the unit.
The supply air grille is in the upper part of the front of the unit and ventilates according to the principle of mixing ventilation.

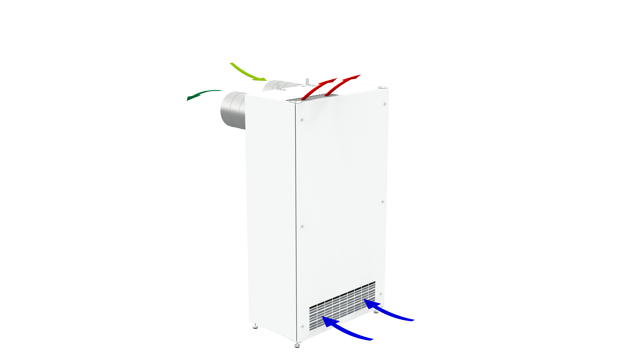

AM 950 F HH

AM 950 F HH is a horizontal version where the intake and exhaust are routed to the rear of the unit.
The supply air grille is in the upper part of the front of the unit and ventilates according to the principle of mixing ventilation.

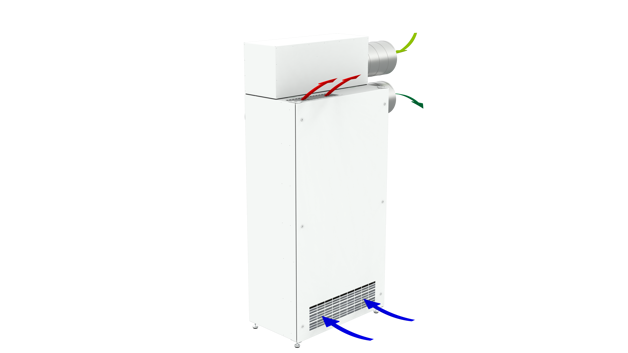

AM 950 F SSR

AM 950 F SSR is a side version where the inlet and outlet are led out of the right side of the unit.
The supply air grille is in the upper part of the front of the unit and ventilates according to the principle of mixing ventilation.

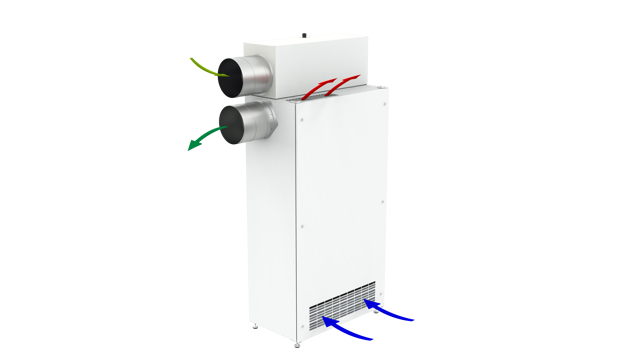

AM 950 F SSL

AM 950 F SSL is a side version where the intake and exhaust are led out of the left side of the unit.
The supply air grille is in the upper part of the front of the unit and ventilates according to the principle of mixing ventilation.

AM 950+ F

Do you need more?

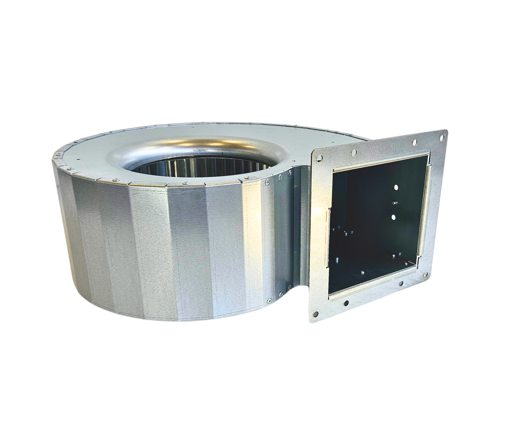

It is possible to choose a plus variant with a fan that has a higher pressure resistance.

A fan with higher pressure resistance for a decentralized ventilation unit is an advantage in situations where higher pressure resistance is needed without compromising on capacity. This can be in cases where there are extra long ducts for exhaust and intake.

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.

Contact us if you want to know more about decentralized ventilation

Our competent sales team is ready to answer your questions and advise you on everything from dimensioning, configuration, installation, and planning - so you can find just the right unit for your needs.
