AM 1200

AM 1200 is a decentralised ventilation unit where the fresh air is combined with elegant design, which can be used for much more than you think.

Ventilation need not always have a solely technical function. It can also play an active role in the function of the room. AM 1200 is a decentralised ventilation concept where the fresh air is combined with elegant design, which can be used for much more than you think.

AM 1200 is a floor-standing unit available as a horizontal and vertical version. With different types of design panels, the surface can be used as a whiteboard, message board, mirror – your imagination is the only limit!

Examples of applications

  • Offices
  • Meeting rooms
  • Institutions
  • Libraries

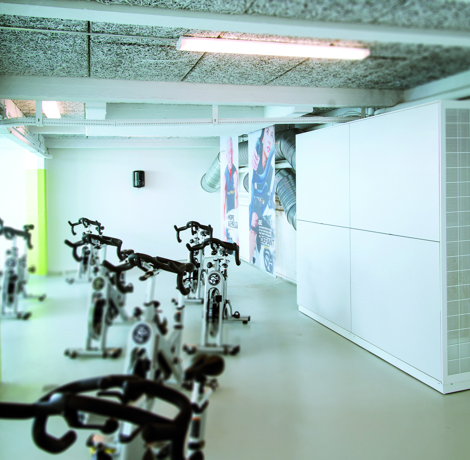

  • Spinning rooms, gyms and the like
Data AM 1200

TECHNICAL DATA

Filter class

30 dB(A)

35 dB(A)

Maximum capacity
Horizontal model, Ø400 mm right / left:

ePM10 75%

ePM1 55%

ePM1 80%

930 m³/h

837 m³/h

744 m³/h

1180 m³/h

1062 m³/h

944 m³/h

Maximum capacity
Horizontal model, Ø400 mm center:

ePM10 75%

ePM1 55%

ePM1 80%

1050 m³/h

945 m³/h

840 m³/h

1310 m³/h

1179 m³/h

1048 m³/h

Maximum capacity
Vertical model, Ø400 mm right / left:

ePM10 75%

ePM1 55%

ePM1 80%

870 m³/h

783 m³/h

696 m³/h

1130 m³/h

1017 m³/h

904 m³/h

Maximum capacity
Vertical model, Ø400 mm center:

ePM10 75%

ePM1 55%

ePM1 80%

980 m³/h

882 m³/h

784 m³/h

1260 m³/h

1134 m³/h

1008 m³/h

Maximum capacity
Vertical model, Ø315 mm right / left:**

ePM10 75%

ePM1 55%

ePM1 80%

820 m³/h

738 m³/h

656 m³/h

1060 m³/h

954 m³/h

848 m³/h

Maximum capacity
Vertical model, Ø315 mm center:**

ePM10 75%

ePM1 55%

ePM1 80%

920 m³/h

828 m³/h

736 m³/h

1170 m³/h

1053 m³/h

936 m³/h

Throw length (0,2 m/s) - center

ePM10 75%

ePM1 55%

ePM1 80%

min. 3 m at 1000 m3/h

max. 6,5 m at 1000 m3/h

min. 4 m at 1300 m3/h

max. 8 m at 1300 m3/h

Throw length (0,2 m/s) - right / left

ePM10 75%

ePM1 55%

ePM1 80%

min. 4 m at 1000 m3/h

max. 9 m at 1000 m3/h

min. 5,5 m at 1300 m3/h

max. 11 m at 1300 m3/h

Nominal current*

1,4 A

Nominal power consumption*

254 W

Electrical connection

3 x 400 V + N + PE / 50 Hz

Duct connections

Ø400 mm

Condensate drain

Ø16 mm

Weight

Right/left variant: 545 kg
Center variant: 630 kg

Counterflow heat exchanger

4 x Aluminium

Supply air filter

ePM10 75%, ePM1 55% or ePM1 80%

Extract air filter

ePM10 75%

Recommended fuse

3x13 A

Leakage current

<– 9 mA

Dimensions (WxHxD)

Horizontal: 496 x 2098 x 2427 mm

Vertical: 496 x 2406 x 2427 mm

* At filter class, supply air/extract air: ePM10 75% / ePM10 75%

** With roof cap module

ELECTRIC HEATING SURFACE

PREHEATING FUNCTION

COMFORT HEATING FUNCTION

Heat output

2500 W

1670 W

Thermal circuit breaker, aut. reset

75°C

75°C

Thermal circuit breaker, man. reset

120°C

120°C

WATER HEATING SURFACE

COMFORT HEATING FUNCTION

Max. operating temperature

90°C

Max. operating pressure

10 bar

Heat output

2454 W*

Connection dimension

1/2" (DN 15)

Materials pipes/fins

copper/aluminium

Open/close time, motor valve

60 s

* Capacity at: supply/return temperature 60/40°C, water volume 107 l/h

Standard and options

Standard and options

am 1200 V

Bypass

x

Electric preheating surface

Electric comfort heating surface

Water heating surface

CO2 sensor (built-in)

Hygrostat

Condensate pump

Spring-return motor on main air damper (supply and exhaust)

x

Counterflow heat exchanger (aluminium)

x

Energy meter

x : standard
: option

Throw length

The AM 1200 unit spreads an air stream in different directions, depending on the given airflow. This can be seen in the illustration, in which the blue shading indicates throw length the different airflows.

1. Throw length seen from above
2. Throw length seen from the side

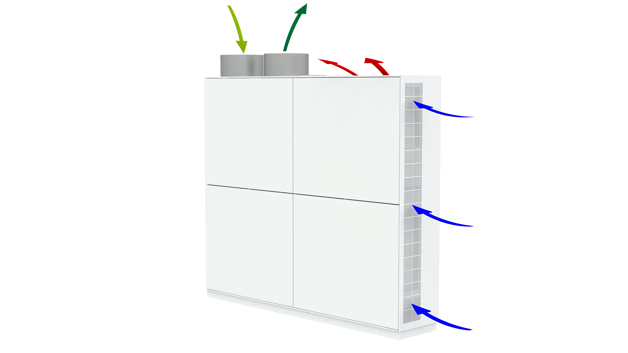

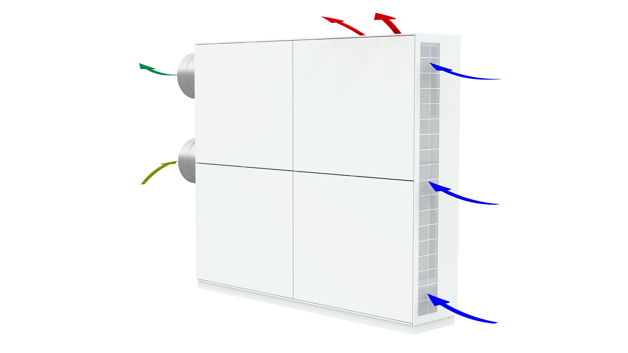

AM 1200 versions

Ready for a breath of fresh air

At Airmaster, we are “decentral” through and through. We are unrivalled when it comes to creating the best indoor climate and optimal well-being because we take each room and its occupants into account – and because we constantly strive to improve on what we do.
