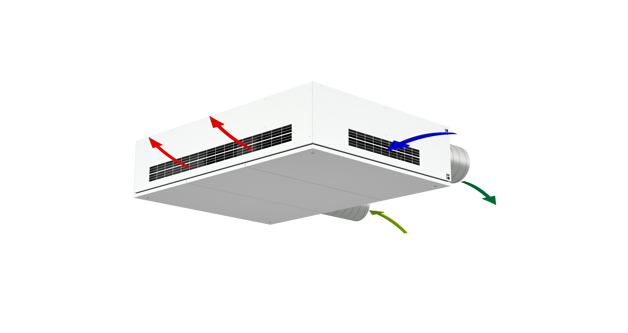

AM 950 C

At Airmaster, we believe it’s crucial to improve the indoor climate in schools and daycare centers. Improved indoor air quality benefi ts the health and wellbeing of children and can boost their learning.

Good ventilation keeps CO2 levels down, removes moisture and pollution, and reduces the risk of spreading infections. In buildings with many children and adults in the same room, it is important that the air is changed regularly - either through natural ventilation (e.g. open windows) or mechanical ventilation.

AM 950 C is designed to make it easy, simple and aff ordable for schools and daycare centers to achieve a great indoor climate.

This wall-mounted ventilation unit is ideal for spacious areas such as classrooms and playrooms. Its design in classic white integrates into the ceiling fully visible or partially integrated into the suspended ceiling.

Examples of applications:

Schools
Daycares
Institutions

Click to play

AM 950 C Brochure

Make fresh air simpel, uncomplicated and convenient for schools and daycare centers. Explore the AM 950 C further in the brochure here.

Download brochure

Technical description

The AM 950 C ensures efficient, noise-free air exchange with a maximum sound pressure level. It has high heat recovery efficiency and low power consumption and uses energy-efficient EC motors for silent operation and flexible adjustment. It is VDI 6022 certified to ensure compliance with hygiene requirements.

The AM 950 C is equipped as standard with a built-in LED indicator for warnings or alarms. The ventilation unit can be configured, like all Airmaster units, with sensors, heating surfaces, control panel or connection to central control as needed.

Below you can see a selection of options. See all options in the data sheet.

Electric comfort heating surface to support inlet air temperature.

Electric preheater warms the outside air before it is supplied to the counterflow heat exchanger, thereby preventing ice formation in the heat exchanger.

Condensate pump for draining condensation water.

The Airlinq® Orbit control panel with touch function is user-friendly for navigating and setting operating parameters.

The CO₂ sensor measures the CO₂ level in the room. This provides both a high level of indoor air quality with reduced energy consumption.

Airlinq© Online. Control and monitor ventilation in real-time from anywhere using your device. Optimize ventilation operations, manage energy usage, schedule service visits, reduce onsite visits, and more.

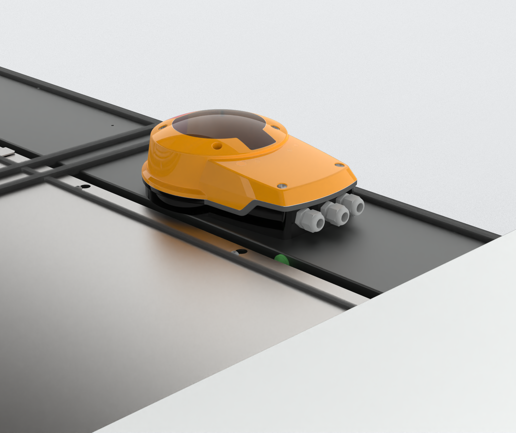

Smoke sensor

Smoke sensor | AM 950 C

With a smoke sensor installed in a ventilation system, it is possible for the system to detect smoke and act accordingly to prevent smoke spreading to the room/building.

The sensor is located on the air intake side of the unit and will therefore detect smoke that is drawn into the unit from the outside via the unit's air intake. When smoke is detected, the system will stop and the main dampers will close, which will prevent further smoke from being drawn into the system and from spreading to the control room. If smoke is detected, an alarm is sent to the controller.

The smoke sensor is tested according to the EN 54-27 series, which means that it meets strict safety and reliability requirements, ensuring that it can effectively detect smoke in the facility. In addition, it has been tested to function correctly under different conditions, including variations in airflow, temperature and humidity.

AM 950 C data

Technical data

For technical data, installation or operation and maintenance - download documentation here.
For additional documentation visit our download center.

Click on the image

Versions

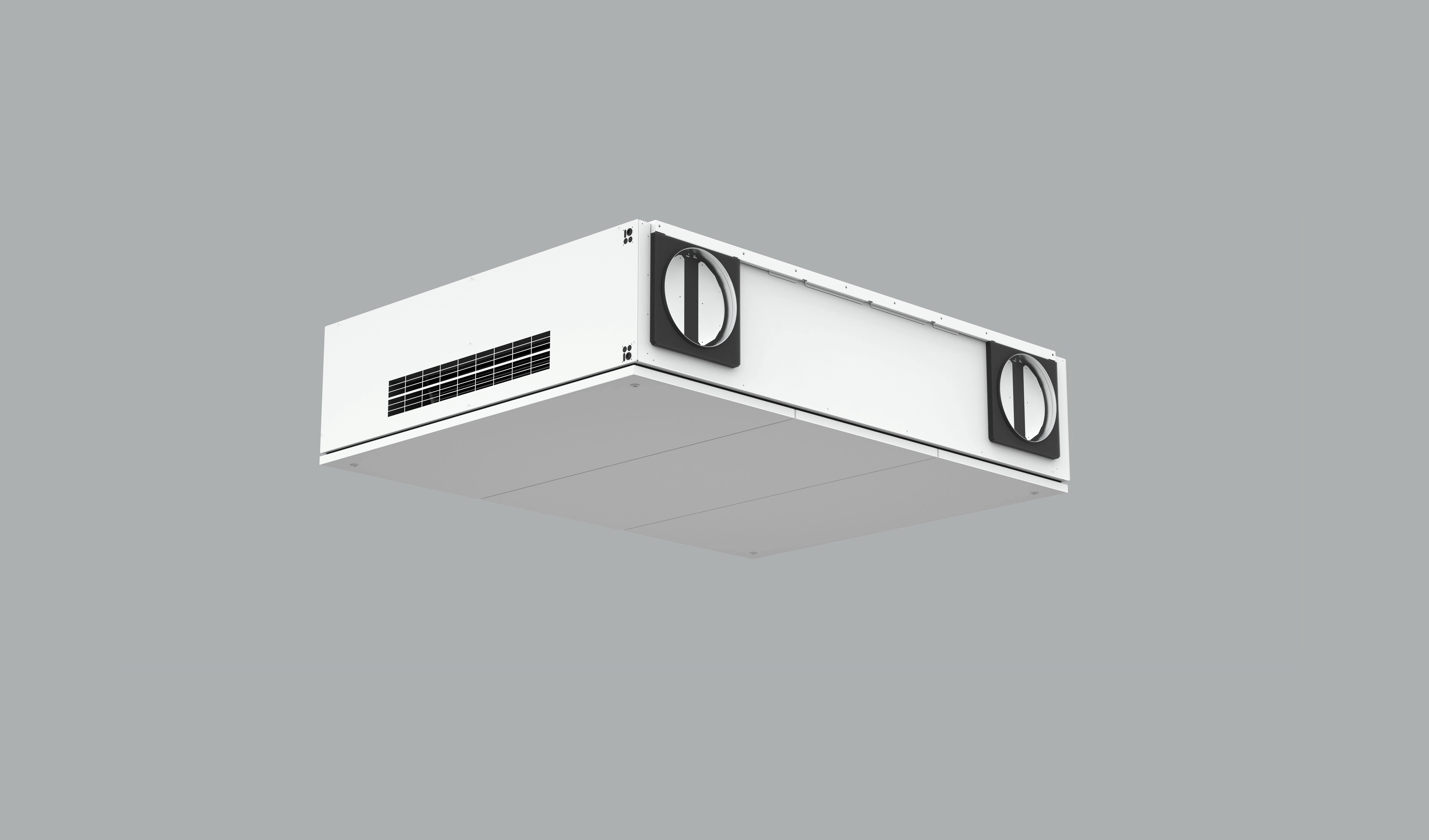

AM 950 C HH

The AM 950 C HH is a horizontal version where the inlet and outlet are routed to the rear of the unit.
The supply air grille is in the lower part of the front of the unit and ventilates according to the principle of mixing ventilation.

AM 950+ C

Do you need more?

It is possible to choose a plus variant with a fan that has a higher pressure resistance.

A fan with higher pressure resistance for a decentralized ventilation unit is beneficial in situations where higher pressure resistance is needed without compromising on capacity. This can be in cases where there are extra long ducts for exhaust and intake.

Product catalogue 6.0

Extend the service life of the unit.

You can help extend the service life of your Airmaster unit.

One way to do this is to make sure you change the filter in the unit - and to use original Airmaster filters.

This also ensures that energy consumption remains minimal throughout the service life of the unit.
