AIRLINQ® ORBIT & VIVA Control Panels

Designed for AM ventilation systems

The intuitive control panels make it easy to manage your system.
With clear functions, you can take full control in just a few seconds - without any complicated settings.

Read more

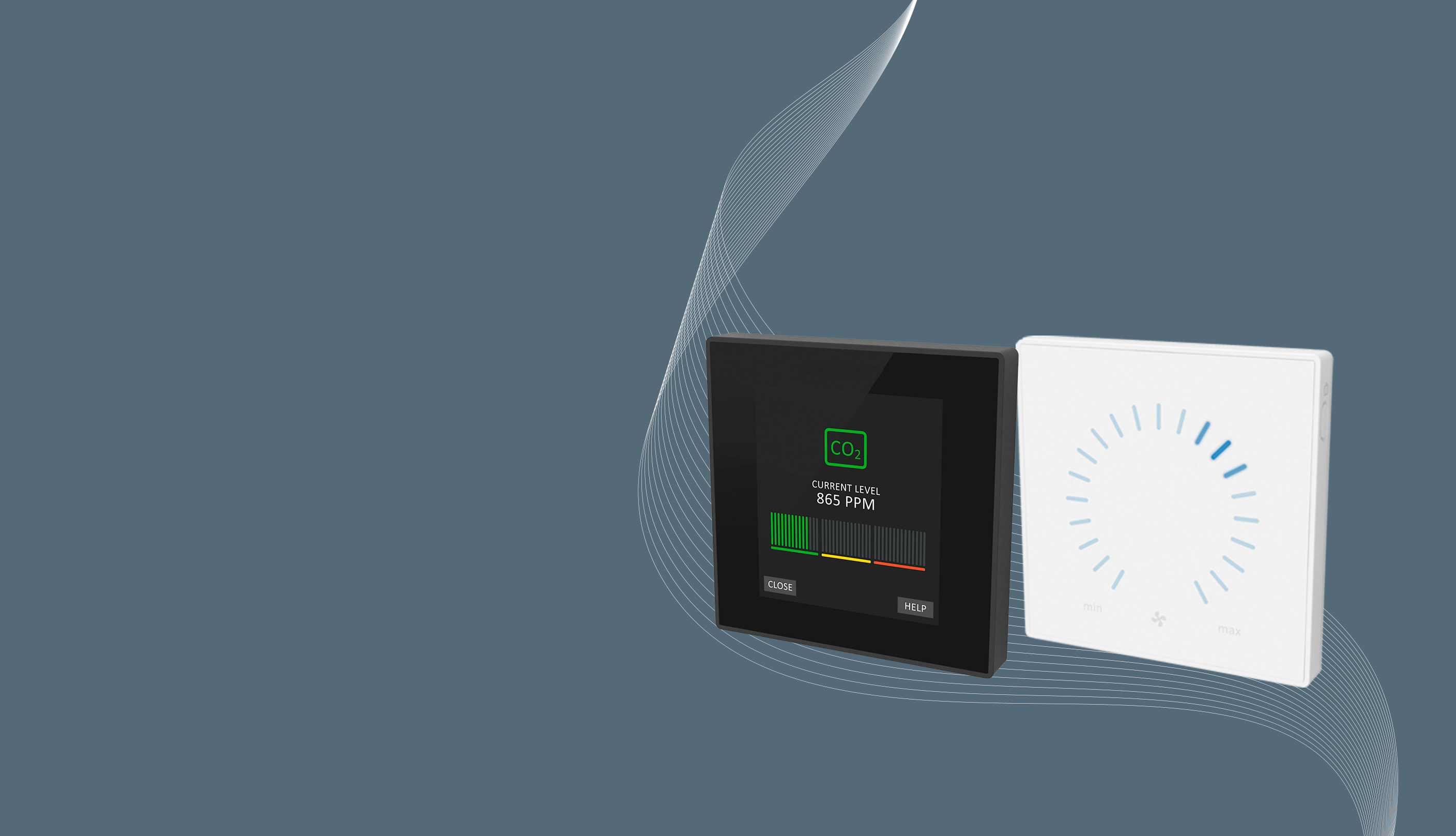

AIRLINQ®ORBIT & VIVAControl Panels

Airlinq® Orbit control functions

The Airlinq® Orbit control panel with touch functions is user-friendly for navigation and setting operating parameters, which includes a wide range of options for controlling ventilation. The menu layout makes operation easy and simple and reduces the risk of error.

  • Manual start, stop, and standby. Manual start and stop of individual groups or entire system for Airlinq® BMS.

  • Setting of all major operating parameters using an automatic startup guide. <the start-up guide can be restarted at any time.

  • Display and set airflow via the touch function on the front.

  • Display warnings and alarms with text descriptions (for all Airlinq® BMS units).

  • Holiday mode: a function to ensure basic ventilation with reduces airflow.

  • Shows the CO2 and TVOQ level when a CO2 and/or TVOQ sensor is connected (shows separately for all sensors in Airlinq® BMS).

  • Easy, simple control of Airlinq® BMS.

  • Automatic operating lock.

  • Screen lock with security code.

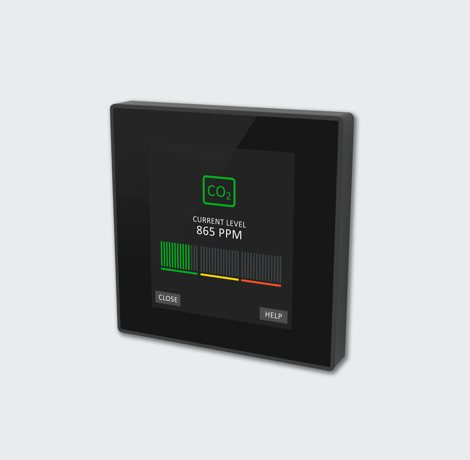

Airlinq® Orbit

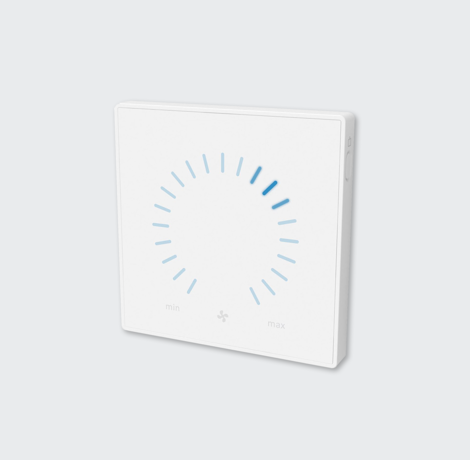

Airlinq® Viva

Airlinq® Viva Control Functions

The control functions for Airlinq® Viva are simple and user-friendly. Operation is fully automated, minimizing the risk of user error.

  • Manual start, stop, and sleep mode. Manual start and stop of a single group or the entire system via Airlinq® BMS.

  • Airflow adjustment via touch controls on the front panel.

  • Display of warnings and alarms with yellow or red symbols.

  • Vacation mode – this function ensures basic ventilation with reduced airflow.

  • Automatic operation lock.

  • Child lock

Operation via PC

If you need to adjust other operating parameters, the control panel can be connected to a PC via a USB port. Using the Airlinq® User Tool and Airlinq® Service Tool (used by service technicians), you can get an overview of the ventilation system’s operation. See the following description of the features offered by these two programs.

Airlinq® Service Tool

  • Set up and program the control system.

  • Download a data log and graphical display of operation.

  • Download or upload a control configuration.

  • Monitor energy consumption using a built-in energy meter.

  • Update control software.

  • Automatically synchronize the built-in clock with the PC’s date and time.

Airlinq® User Tool

  • The control panel can be easily connected to a PC, and the Airlinq® User Tool provides access to operating data. Options for: Setting airflow, supply air temperature, and maximum room temperature

  • Filter status display

  • Setting the CO2 operating range

  • Setting, activating, and deactivating time programs.

Contact us if you want to know more about decentralized ventilation

Our competent sales team is ready to answer your questions and advise you on everything from dimensioning, configuration, installation, and planning - so you can find just the right unit for your needs.
